Functions:
Lock-off switch
V-grooves
Parking rest
Key product features:

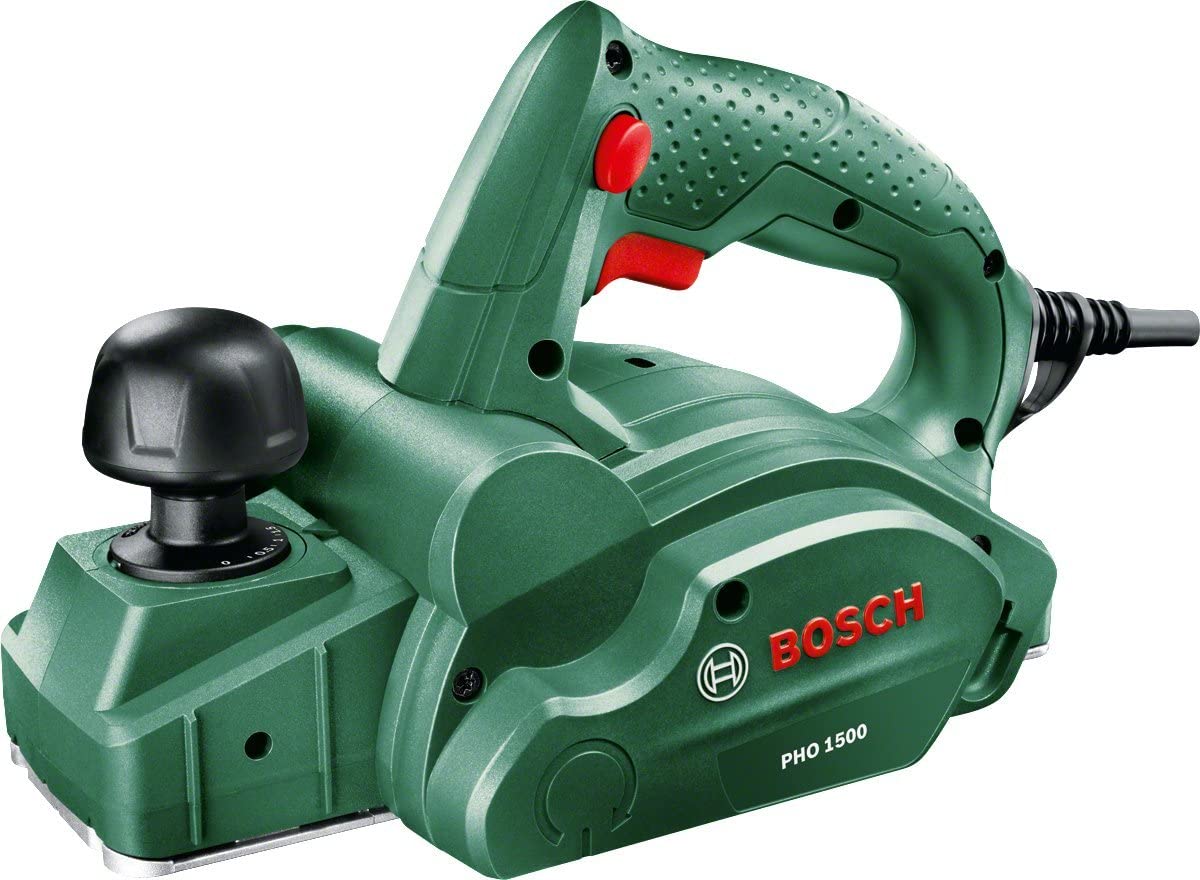

Compact 550 watt planer for demanding applications up to a cutting depth of 1.5 mm
Chip clearance with connection to a dust bag or vacuum cleaner
Patented Woodrazor blade system – easy, effortless planing, the easiest and quickest possible blade changing and high surface quality
Chip clearance blower prevents chip congestion – for working without interruption
3 V-grooves for precisely rounding off corners
Automatically extending parking rest – prevents damage to the workpiece or planer blade when putting the planer down
Rebating depth up to 8 mm
Combined guide and planing depth adjustment knob provides secure guidance and infinitely variable adjustment
Improved planing depth adjustment and key storage
The best ergonomics due to optimised position of the handle which is suitable for both left and right hander
Technical data:
Power input: 550 W
Power output: 280 W
Cutting depth: 0 – 1,5 mm
Rebating depth: 0 – 8 mm
Planing width: 82 mm
No-load speed: 19.500 rpm
Machine weight: 2,4 kg
Noise / vibration information:
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions).
Vibration emission value ah: 4.5 m/s²
Uncertainty K: 1.5 m/s²
