IMPACT DRILL

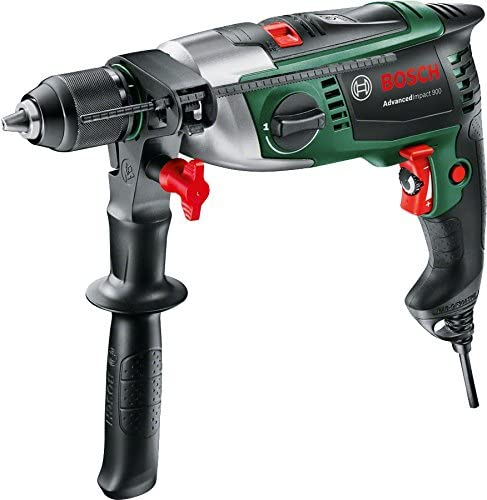

AdvancedImpact 900
The new impact drill with innovative Bosch Kickback Control and 2-speed gearbox – for DIYers with the highest demands on power and control.
Key Product Features:
Innovative Bosch Kickback Control – the integrated sensor increases user protection by shutting the tool down if it jams
Maximum drilling performance and sturdiness for demanding jobs: An extremely powerful 900 W motor, 2-speed gearbox and improved impact mechanism ensure that even the biggest drilling diameters are mastered quickly and easily – in all materials, even concrete. The metal housing ensures an exceptionally high level of robustness
The best results due to Bosch Constant Electronic: The speed is automatically kept constant, even under load
2-speed gearbox that provides high torque in 1st gear and high speed in 2nd gear
Bosch Speed-Preselection: Electronic speed preselection and control using setting wheel and trigger switch – for gearing the tool towards the material with fingertip control of the power, e.g. when starting to drill in smooth surfaces and when driving screws
Screwdriving/Drilling/Impact drilling function switch for material-specific work
Robust, single-sleeve keyless chuck with Bosch Auto-Lock for the fastest and easiest bit changes
Forward/reverse rotation: Also ideal for screwdriving
Auxiliary handle with anti-slip function: Positive engagement fit prevents auxiliary handle from slipping off the collar
New ergonomic design with even more softgrip for the best handling
Convenient to use due to integrated switch for continuous operation
Cable guide with hanging hook for practical storage
FUNCTIONS:
Keyless chuck
2-speed gearbox
Bosch Auto-Lock
Speed preselection
Bosch Constant Electronic
2.5 m cable
Right-hand/left-hand rotation
Bosch Electronic
Softgrip
Application: screwdriving / drill. / impact drill.
Bosch Kickback Control
TECHNICAL DATA:
Power input: 900 W
Output power, max.: 1.050 W
Stall torque in accordance with EN 60745: 73 Nm
Rated torque (1st gear / 2nd gear): 1,6 / 0,5 Nm
No-load speed (1st gear / 2nd gear): 50 – 1.120 / 2.850 rpm
Impact rate: 48.450 bpm
Machine weight: 2,6 kg
Max. drilling dia. in concr. (1st gear / 2nd gear): 0 / 18 mm
Max. drilling dia. in steel (1st gear / 2nd gear): 13 / 8 mm
Max. drilling dia. in wood (1st gear / 2nd gear): 40 / 25 mm
NOISE/ VIBRATION NOISE:
Drilling in Metal
Vibration emission value ah: 6.5 m/s²
Uncertainty K: 1.5 m/s²
Impact Drilling in Concrete
Vibration emission value ah: 20.0 m/s²
Uncertainty K: 1.5 m/s²
Screwdriving
Vibration emission value ah: 2.5 m/s²
Uncertainty K: 1.5 m/s²
